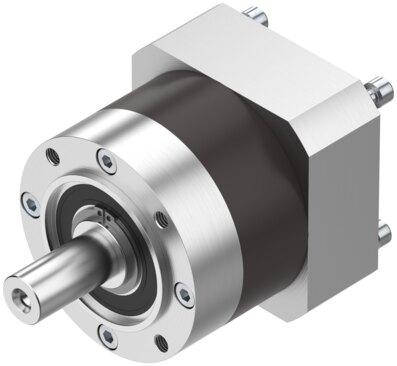

Reference imageConfirm configuration by manufacturer part number.
Festo
552196
Gear unit EMGA-120-P-G3-SAS-100
The Festo 552196 is a 6000 g industrial component featuring a planetary gear set with a 3:1 gear ratio, a 120 mm gearbox flange size, and a 100 mm motor flange size. It delivers a continuous output torque of 115 Nm, a maximum output torque of 184 Nm, a maximum actuator speed of 6500 rpm, and a maximum efficiency of 98% within a gearbox operating temperature range of -25 °C to 90 °C. The unit provides 0.12 deg of torsional backlash, 12 Nm/arcmin of torsional rigidity, 2.63 kgcm² mass moment of inertia, IP54 degree of protection, VDMA24364-B2-L LABS conformity, RoHS compliant materials, 2500 N permissible axial shaft load, and 1750 N permissible radial shaft load via its 120G output shaft and 100A actuator interfaces. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552196
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552196.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 120 mm
- Motor ange size
- 100 mm
- Torsional backlash
- 0.12 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 3:1
- Max. actuator speed
- 6500 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 115 Nm
- Mass moment of inertia, gearbox
- 2.63 kgcm²
- Max. output torque
- 184 Nm
- Max. efficiency
- 98 %
- Torsional rigidity
- 12 Nm/arcmin
- Product weight
- 6000 g
- Permissible axial shaft load
- 2500 N
- Permissible radial shaft load
- 1750 N
- Gearbox interface, output shaft
- 120G
- Gearbox interface, actuator
- 100A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552196. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
