Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

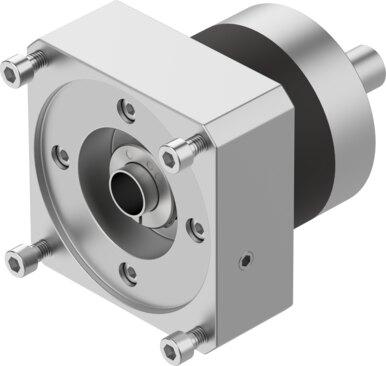

Reference imageConfirm configuration by manufacturer part number.
Festo
552198
Gear unit EMGA-120-P-G3-SAS-140
The Festo 552198 is a planetary gear set featuring a 3:1 gear ratio, a 120 mm gearbox flange size, and a 140 mm motor flange size with a 120G output shaft interface and a 140A actuator interface. This component delivers a continuous output torque of 115 Nm, a maximum output torque of 184 Nm, a maximum actuator speed of 6500 rpm, and a maximum efficiency of 98%, supported by a torsional rigidity of 12 Nm/arcmin and a torsional backlash of 0.12 deg. Built with a product weight of 6000 g and a gearbox mass moment of inertia of 2.63 kgcm², the unit operates within a temperature range of -25 °C to 90 °C, maintains an IP54 degree of protection, complies with VDMA24364-B2-L LABS conformity, and includes RoHS-compliant materials. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552198
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552198.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 120 mm
- Motor ange size
- 140 mm
- Torsional backlash
- 0.12 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 3:1
- Max. actuator speed
- 6500 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 115 Nm
- Mass moment of inertia, gearbox
- 2.63 kgcm²
- Max. output torque
- 184 Nm
- Max. efficiency
- 98 %
- Torsional rigidity
- 12 Nm/arcmin
- Product weight
- 6000 g
- Gearbox interface, output shaft
- 120G
- Gearbox interface, actuator
- 140A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552198. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
