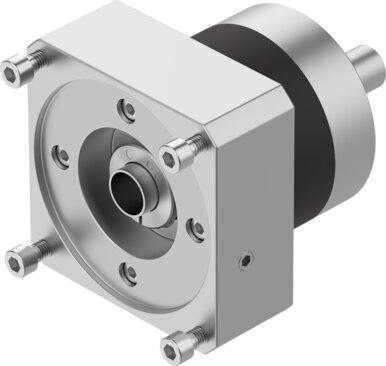

Reference imageConfirm configuration by manufacturer part number.
Festo
552199
Gear unit EMGA-120-P-G5-SAS-140
This Festo industrial component features a 120 mm gearbox flange size and a 140 mm motor flange size utilizing a planetary gear set with a 5:1 gear ratio. It delivers a continuous output torque of 195 Nm, a maximum output torque of 312 Nm, and a maximum actuator speed of 6500 rpm while maintaining a torsional backlash of 0.12 deg and a maximum efficiency of 98%. The unit weighs 6000 g, operates in temperatures from -25 °C to 90 °C, and provides an IP54 degree of protection alongside RoHS-compliant materials and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552199
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552199.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 120 mm
- Motor ange size
- 140 mm
- Torsional backlash
- 0.12 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 5:1
- Max. actuator speed
- 6500 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 195 Nm
- Mass moment of inertia, gearbox
- 1.53 kgcm²
- Max. output torque
- 312 Nm
- Max. efficiency
- 98 %
- Torsional rigidity
- 12 Nm/arcmin
- Product weight
- 6000 g
- Gearbox interface, output shaft
- 120G
- Gearbox interface, actuator
- 140A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552199. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
