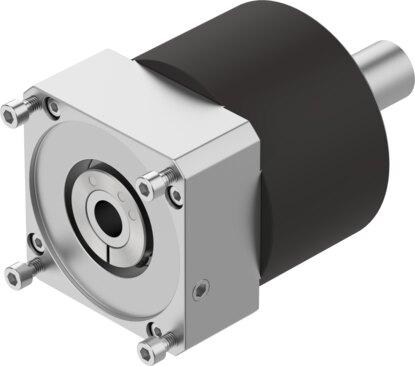

Reference imageConfirm configuration by manufacturer part number.
Festo
552200
Gear unit EMGA-160-P-G3-SAS-140
The Festo 552200 is an industrial component featuring a planetary gear set with a 3:1 gear ratio, a 160 mm gearbox flange size, and a 140 mm motor flange size. It delivers a continuous output torque of 400 Nm, a maximum output torque of 640 Nm, a maximum actuator speed of 6500 rpm, and operates within a temperature range of -25 °C to 90 °C while maintaining an IP54 degree of protection, VDMA24364-B2-L LABS conformity, and RoHS compliance. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552200
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552200.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 160 mm
- Motor ange size
- 140 mm
- Torsional backlash
- 0.1 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 3:1
- Max. actuator speed
- 6500 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 400 Nm
- Mass moment of inertia, gearbox
- 12.14 kgcm²
- Max. output torque
- 640 Nm
- Max. efficiency
- 98 %
- Torsional rigidity
- 38 Nm/arcmin
- Product weight
- 18000 g
- Permissible axial shaft load
- 7000 N
- Permissible radial shaft load
- 5000 N
- Gearbox interface, output shaft
- 160G
- Gearbox interface, actuator
- 140A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552200. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
