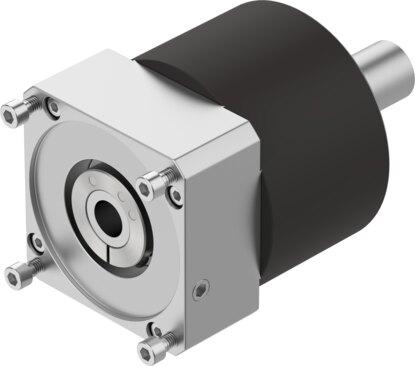

Reference imageConfirm configuration by manufacturer part number.
Festo
552201
Gear unit EMGA-160-P-G5-SAS-140
The Festo 552201 is an industrial planetary gear set featuring a 5:1 gear ratio, a 160 mm gearbox flange size, and a 140 mm motor flange size with 140A actuator and 160G output shaft interfaces. Weighing 18000 g with a mass moment of inertia of 6.07 kgcm², this RoHS-compliant component delivers a continuous output torque of 450 Nm, a maximum output torque of 720 Nm, and a maximum actuator speed of 6500 rpm while maintaining an efficiency of up to 98% within an operating temperature range of -25 °C to 90 °C. It provides a torsional backlash of 0.1 deg, a torsional rigidity of 38 Nm/arcmin, IP54 protection, VDMA24364-B2-L LABS conformity, and permits an axial shaft load of 7000 N alongside a radial shaft load of 5000 N. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552201
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552201.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 160 mm
- Motor ange size
- 140 mm
- Torsional backlash
- 0.1 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 5:1
- Max. actuator speed
- 6500 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 450 Nm
- Mass moment of inertia, gearbox
- 6.07 kgcm²
- Max. output torque
- 720 Nm
- Max. efficiency
- 98 %
- Torsional rigidity
- 38 Nm/arcmin
- Product weight
- 18000 g
- Permissible axial shaft load
- 7000 N
- Permissible radial shaft load
- 5000 N
- Gearbox interface, output shaft
- 160G
- Gearbox interface, actuator
- 140A
- Note on materials
- RoHS compliant
