Festo
552252

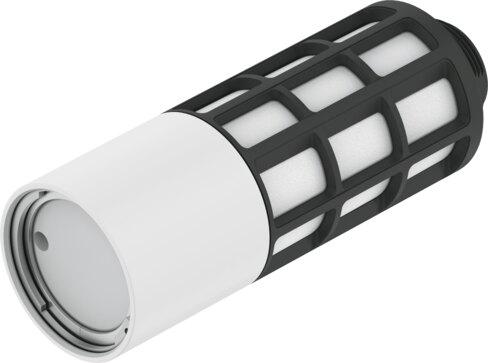

Pneumatic muffler UOS-1
The Festo 552252 is an open muffler industrial component featuring a G1 pneumatic connection, a POM housing, and a wrought aluminum alloy sleeve. This component operates at pressures from 0 MPa to 1 MPa (0 bar to 10 bar) using compressed air as per ISO 8573-1:2010 [-:-:-] and emits a noise level of 75 dB(A). Designed with external thread mounting, a protective grounding cushioning insert, and a CRC of 2 for moderate corrosion stress, it weighs 200 g and functions across an ambient temperature range of -10 °C to 50 °C in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552252
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552252.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of seal on screwed plug
- without seal
- Mounting position
- Any
- Structural design
- Muffler open
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 75 dB(A)
- Ambient temperature
- -10 °C...50 °C
- Type of mounting
- With external thread
- Product weight
- 200 g
- Pneumatic connection
- G1
- Cushioning insert material
- Protective grounding
- Note on materials
- RoHS compliant
- Housing material
- POM
- Sleeve material
- Wrought aluminum alloy
