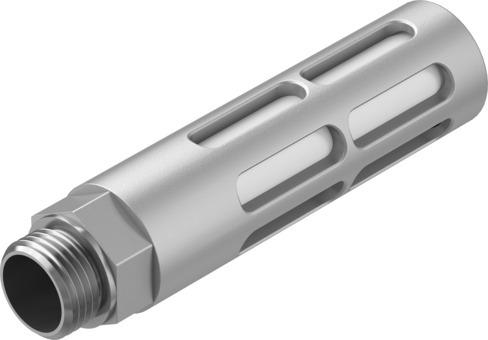

Reference imageConfirm configuration by manufacturer part number.
Festo
552422
Pneumatic muffler U-1/2-BR
The Festo 552422 is an industrial component featuring a die-cast aluminum housing, a PE cushioning insert, and a G1/2 pneumatic connection with a product weight of 75 g. It operates within a pressure range of 0 MPa to 1 MPa (0 bar to 10 bar) and delivers a flow rate of 10600 l/min with respect to the atmosphere while generating a noise level of 80 dB(A). Designed for any mounting position, this unit functions with compressed air conforming to ISO 8573-1:2010 [7:-:-] at ambient temperatures from -10 °C to 70 °C, and accommodates oil lubrication which is required for further use. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552422
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552422.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 10600 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 80 dB(A)
- Ambient temperature
- -10 °C...70 °C
- Product weight
- 75 g
- Pneumatic connection
- G1/2
- Cushioning insert material
- PE
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552422. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
