Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

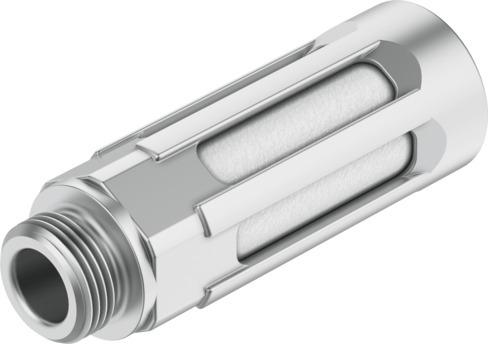

Reference imageConfirm configuration by manufacturer part number.
Festo
552424
Pneumatic muffler U-1/4-BR
The Festo 552424 industrial component features a die-cast aluminum housing, a PE cushioning insert, and a G1/4 pneumatic connection with any mounting position. It operates within a pressure range of 0 MPa to 1 MPa (0 bar to 10 bar), delivers an atmospheric flow rate of 3400 l/min, and generates a noise level of 77 dB(A) across an ambient temperature range of -10 °C to 70 °C. Operating with compressed air as per ISO 8573-1:2010 [7:-:-], this 17 g unit permits oil lubrication and conforms to VDMA24364-B1/B2-L LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552424
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552424.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 3400 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 77 dB(A)
- Ambient temperature
- -10 °C...70 °C
- Product weight
- 17 g
- Pneumatic connection
- G1/4
- Cushioning insert material
- PE
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552424. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
