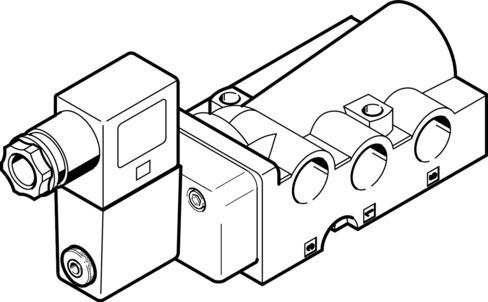

Reference imageConfirm configuration by manufacturer part number.
Festo
552428
Air solenoid valve NVF3-MOH-5/2-K..+MSFW-230
The Festo 552428 is a 5/2-way monostable industrial component featuring a piloted, piston gate valve design with soft sealing and a nominal width of 7 mm. Engineered with an electrical actuation type, a 230V AC operating voltage, and a normal nominal flow rate of 900 l/min, this unit operates within a pressure range of 2 bar to 10 bar and conforms to VDI/VDE 3845 (NAMUR) standards. It includes a mechanical spring reset method, an adjustable exhaust air function, a detenting manual override, and a sub-base pneumatic working port providing IP65 protection in any mounting position, backed by c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552428
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552428.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 53 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 900 l/min
- Pneumatic working port
- Sub-base
- Operating voltage
- 230V AC
- Operating pressure
- 2 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | As per IEC 60529
- Nominal width
- 7 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- Detenting
- Type of control
- Piloted
- Flow direction
- Non-reversible
- Pilot pressure
- 2 bar...10 bar
- b-value
- 0.33
- C value
- 3 l/sbar
- Switching time off
- 38 ms
- On switching time
- 13 ms
- Coil characteristics
- 230 V AC: 50/60 Hz, initial power 9.0 VA, holding power 7.0 VA
- Permissible frequency uctuations
- +/- 10%
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Temperature of medium
- -10 °C...60 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552428. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
