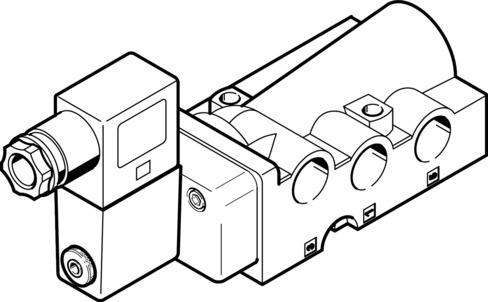

Reference imageConfirm configuration by manufacturer part number.
Festo
552429
Air solenoid valve NVF3-MOH-5/2-K..+MSFW-110
The Festo 552429 is a 5/2-way monostable industrial component featuring a piloted, piston gate valve structural design with soft sealing principles and a nominal width of 7 mm. This electrical component operates on 110V AC within an operating and pilot pressure range of 2 bar to 10 bar, delivering a normal nominal flow rate of 900 l/min through a sub-base pneumatic working port. Built with an IP65 degree of protection, adjustable exhaust air function, mechanical spring reset, and detenting manual override, it conforms to the VDI/VDE 3845 NAMUR standard and carries c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552429
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552429.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 53 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 900 l/min
- Pneumatic working port
- Sub-base
- Operating voltage
- 110V AC
- Operating pressure
- 2 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | As per IEC 60529
- Nominal width
- 7 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- Detenting
- Type of control
- Piloted
- Flow direction
- Non-reversible
- Pilot pressure
- 2 bar...10 bar
- b-value
- 0.33
- C value
- 3 l/sbar
- Switching time off
- 38 ms
- On switching time
- 13 ms
- Coil characteristics
- 110 V AC: 50/60 Hz, initial power 9.0 VA, holding power 7.0 VA
- Permissible frequency uctuations
- +/- 10%
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Temperature of medium
- -10 °C...60 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552429. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
