Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

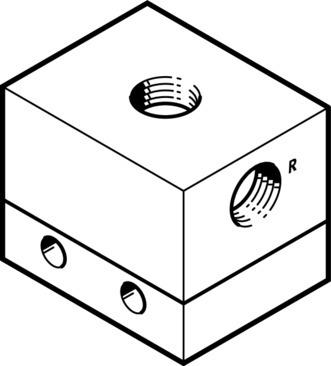

Reference imageConfirm configuration by manufacturer part number.
Festo
552431
Quick exhaust valve SE-1/4
The Festo part number 552431 is a quick exhaust valve featuring G1/4 pneumatic connections for ports 1, 2, and 3, an 8 mm nominal width, and a wrought aluminum alloy anodized housing with NBR seals. It operates within a pressure range of 0.5 bar to 10 bar, handles ambient and medium temperatures from -20 °C to 75 °C, and delivers a standard nominal flow rate of 1700 l/min for exhaust air and 950 l/min for pressurization using compressed air as per ISO 8573-1:2010 [7:-:-]. This unit offers through-hole mounting in any position, a product weight of 250 g, a moderate corrosion resistance class (CRC) of 2, and VDMA24364-B1/B2-L LABS conformity with oil lubrication operation possible. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552431
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552431.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Quick exhaust
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Type of mounting
- With through-hole
- Standard nominal ow rate exhaust air 6->5 bar
- 1700 l/min
- Standard nominal ow rate pressurization 6->5 bar
- 950 l/min
- Operating pressure
- 0.5 bar...10 bar
- Ambient temperature
- -20 °C...75 °C
- Housing material
- Wrought aluminum alloy | Anodized
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Nominal width
- 8 mm
- Mounting position
- Any
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...75 °C
- Product weight
- 250 g
- Pneumatic connection 3
- G1/4
- Seals material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552431. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
