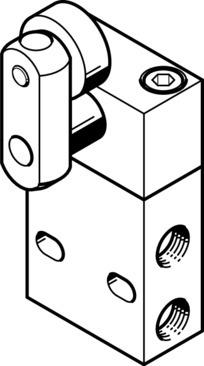

Reference imageConfirm configuration by manufacturer part number.
Festo
552432
Roller lever valve RWB-3-1/8
The Festo 552432 is a mechanical, piloted 3/2-way closed monostable industrial component featuring a piston seat design and a nominal width of 3.5 mm. Constructed with an anodized wrought aluminum alloy housing, NBR seals, and G1/8 pneumatic connections across ports 1, 2, and 3, this unit delivers a normal nominal flow rate of 120 l/min at an operating pressure range of 3.5 bar to 8 bar. It provides a corrosion resistance class of CRC 2, VDMA24364-B1/B2-L LABS conformity, an actuating force of 3.1 N, and a product weight of 160 g for through-hole mounting within an ambient temperature range of -10 °C to 60 °C. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552432
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552432.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Mechanical
- Normal nominal ow rate (normalized to DIN 1343)
- 120 l/min
- Pneumatic working port
- G1/8
- Operating pressure
- 3.5 bar...8 bar
- Structural design
- Piston seat
- Nominal width
- 3.5 mm
- Type of control
- Piloted
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Actuating force
- 3.1 N
- Product weight
- 160 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
- Pneumatic connection 3
- G1/8
- Seals material
- NBR
- Housing material
- Wrought aluminum alloy | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552432. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
