552560

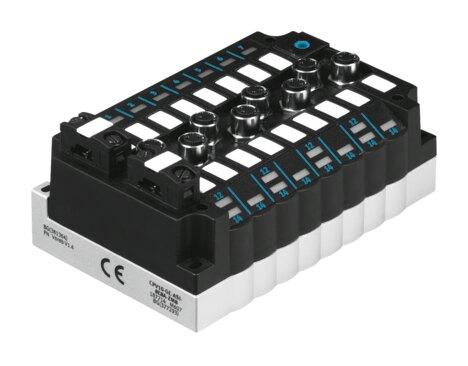

Name: Festo 552560 Electrical interface CPV10-GE-ASI-8E8A-Z-M8-CE
Brand: Festo

Electrical interface CPV10-GE-ASI-8E8A-Z-M8-CE

The Festo part number 552560 is an industrial component featuring an AS-Interface fieldbus interface via a flat cable plug and a load voltage connection via a flat cable plug operating within a 21.6 V to 26.4 V DC range. This device supports a maximum of 8 valve positions, 8 solenoid coils, 8 inputs, and 2 slaves per device, incorporating reverse polarity protection for all electrical operating voltage connections along with device-specific diagnostics for short circuit or overload of inputs. Built with a Corrosion Resistance Class of CRC 2 for moderate corrosion stress and LABS conformity to VDMA24364-B1/B2-L, it operates with a nominal AS-Interface DC voltage of 26.5 V and a nominal load voltage of 24 V DC. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 552560
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 552560.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Fieldbus interface: AS-Interface: at cable plug | Load voltage: at cable plug
Device-specic diagnostics: Short circuit/overload of inputs
Max. no. of valve positions: 8
Max. no. of solenoid coils: 8
Reverse polarity protection: for all electrical operating voltage connections
Number of slaves per device: 2
AS-Interface DC operating voltage range: 26.5 V...31.6 V
Debounce time at inputs: 3 ms
Information concerning load voltage: Via load voltage connection (24 V DC)
Load voltage range DC: 21.6 V...26.4 V
Max. number of inputs: 8
Nominal operating voltage DC AS-Interface: 26.5 V
Nominal voltage DC: 24 V
AS interface residual ripple: 20 mVss
Load voltage residual ripple: 4 Vss
Switching level: Signal 0: <= 5 V | Signal 1: >= 11 V
Current consumption with load voltage from AS-Interface and load: Inputs: 200 mA
voltage connection: Electronics: 40 mA | Valves: 240 mA (depending on pneumatic valve type)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...70 °C
Relative air humidity: 0 - 95% | Non-condensating
Degree of protection: IP65 | In mounted state
Ambient temperature: -5 °C...50 °C
Product weight: 223 g
Input characteristics: As per IEC 1131-2, type 02
Input switching logic: PNP (positive switching)
Addressing range: 1A ... 31A (0)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 552560. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
