Festo
552708

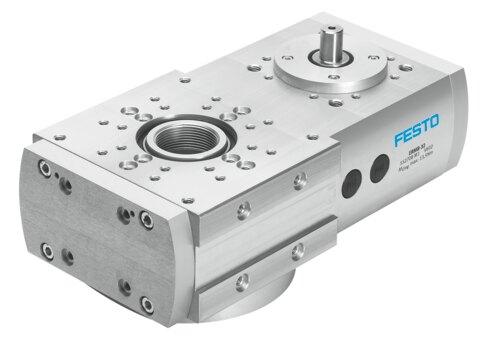

Rotary module ERMB-32
The Festo 552708 is an electromechanical rotary module with a toothed belt featuring a size 32 design, an infinite rotation angle, and a 3:1 gear ratio. Weighing 3250 g, this component delivers a maximum output torque of 25.5 Nm, a maximum driving torque of 8.5 Nm, and a maximum output speed of 300 rpm within an ambient temperature range of -10 °C to 60 °C. It provides a repetition accuracy of ±0.03°, a permissible mass moment of inertia of 1 kgm², position sensing for inductive sensors, and IP20 protection. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552708
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552708.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Structural design
- Electromechanical rotary module | With toothed belt
- Mounting position
- Any
- Rotation angle
- Innite
- Gear ratio
- 3:1
- Repetition accuracy
- ±0.03°
- Position sensing
- For inductive sensors
- Permissible mass moment of inertia
- 1 kgm²
- Product weight
- 3250 g
- Drive pinion diameter
- 12 mm
- Toothed belt pitch
- 5 mm
- Max. output speed
- 300 rpm
- Max. input speed
- 900 rpm
- Max. output torque
- 25.5 Nm
- Max. driving torque
- 8.5 Nm
- No-load driving torque
- 0.5 Nm
- Degree of protection
- IP20
- Noise level
- 53 dB(A)
- Ambient temperature
- -10 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Note on materials
- RoHS compliant
- Housing material
- Wrought aluminum alloy | Anodized
- Material of drive shaft
- Wrought aluminum alloy | Anodized
- Drive shaft material
- high-alloy stainless steel
- Cover material
- Wrought aluminum alloy | Anodized
- Toothed belt material
- Neoprene with glass ber
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552708. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
