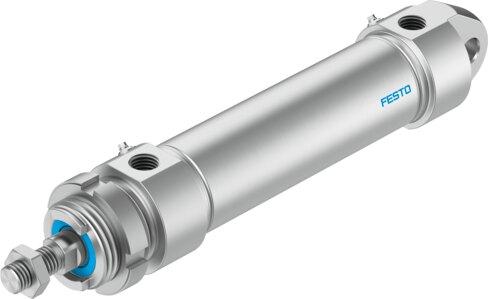

Reference imageConfirm configuration by manufacturer part number.
Festo
552792
Round cylinder CRDSNU-40-
Festo Round cylinder CRDSNU-40-, part number 552792, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 552792
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552792.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Stroke
- 1 mm...500 mm
- Piston diameter
- 40 mm
- Piston rod thread
- M8 | M12x1.25
- Cushioning
- Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning | Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Piston rod end
- External thread | Internal thread
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Hard scraper | For unlubricated operation | EX protection approval (ATEX) | Increased chemical resistance | Extended external thread piston rod | Internal thread on piston rod | Special thread on piston rod | Extended piston rod | Bearing cover without mounting thread | Lateral supply port | Through piston rod | Heat-resistant seals max. 120°C | Temperature range -40 to 80°C | Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX)
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552792. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
