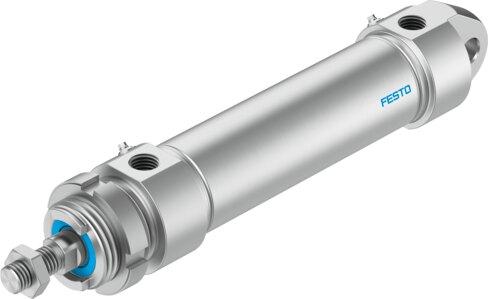

Reference imageConfirm configuration by manufacturer part number.
Festo
552794
Round cylinder CRDSNU-63-
The Festo 552794 is a double-acting industrial component featuring a 63 mm piston diameter, an adjustable stroke ranging from 1 mm to 500 mm, and an operating pressure of 1 bar to 10 bar (0.1 MPa to 1 MPa). This unit includes structural elements comprising a piston, piston rod, and cylinder barrel, along with M16x1.5 or M10 piston rod threads, position sensing via proximity switch, and multiple cushioning options including elastic rings and pneumatic cushioning. Certified for hazardous locations with ATEX and UKEX explosion protection approvals for Zone 1 and Zone 2, this model supports diverse variants such as hard scraper designs, heat-resistant seals up to 120°C, and unlubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552794
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552794.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...500 mm
- Piston diameter
- 63 mm
- Piston rod thread
- M16x1.5 | M10
- Cushioning
- Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning | Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Piston rod end
- External thread | Internal thread
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Hard scraper | For unlubricated operation | EX protection approval (ATEX) | Increased chemical resistance | Extended external thread piston rod | Internal thread on piston rod | Special thread on piston rod | Extended piston rod | Bearing cover without mounting thread | Lateral supply port | Through piston rod | Heat-resistant seals max. 120°C | Temperature range -40 to 80°C | Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552794. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
