Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
552814

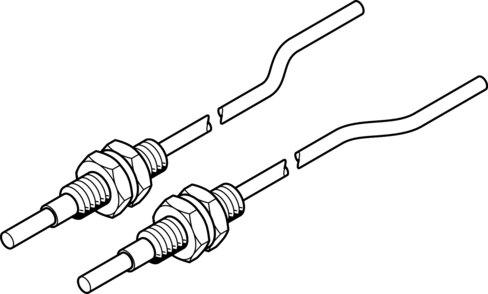

Fiber-optic cable SOOC-TB-M4-1-R25
The Festo 552814 industrial component utilizes a through-beam sensor method of measurement with a standard fibre-optic cable length of 1 meter and an M4 head size. This RoHS compliant device features a working range of 400 mm, a minimum object diameter of 0.35 mm, a 2.2 mm outside diameter, a 25 mm minimum bending radius, and protective grounding on the fibre-optic cable. Constructed with a housing of nickel-plated copper alloy and PVC, the unit operates within an ambient temperature range of -55 °C to 70 °C, supports a maximum tightening torque of 2 Nm, provides IP66 degree of protection, and maintains corrosion resistance class 1 with VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552814
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552814.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Note on materials
- RoHS compliant
- Method of measurement
- Through-beam sensor
- Minimum object diameter
- 0.35 mm
- Special feature of bre-optic cable
- Standard
- Working range
- 400 mm
- Ambient temperature
- -55 °C...70 °C
- Head size
- M4
- Fibre-optic cable length
- 1 m
- Min. bending radius
- 25 mm
- Max. tightening torque
- 2 Nm
- Outside diameter
- 2.2 mm
- Housing material
- Copper alloy | PVC | Nickel-plated
- Fiber-optic cable
- Protective grounding
- Degree of protection
- IP66
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552814. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
