Festo
552818

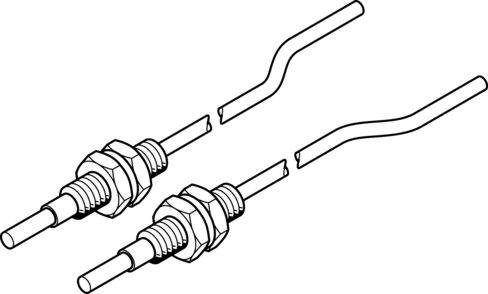

Fiber-optic cable SOOC-TB-F-M4-2-R2
The Festo 552818 is an M4 through-beam sensor featuring a 2 m flexible fibre-optic cable with protective grounding, a 2.2 mm outside diameter, and a 2 mm minimum bending radius. Constructed with a nickel-plated brass housing, this RoHS-compliant component operates within a -40 °C to 70 °C ambient temperature range, delivers a 300 mm working range to detect a minimum object diameter of 0.15 mm, and provides IP66 protection with a corrosion resistance class of 1 and VDMA24364 Zone III LABS conformity at a maximum tightening torque of 2 Nm. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552818
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552818.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Note on materials
- RoHS compliant
- Method of measurement
- Through-beam sensor
- Minimum object diameter
- 0.15 mm
- Special feature of bre-optic cable
- Flexible
- Working range
- 300 mm
- Ambient temperature
- -40 °C...70 °C
- Head size
- M4
- Fibre-optic cable length
- 2 m
- Min. bending radius
- 2 mm
- Max. tightening torque
- 2 Nm
- Outside diameter
- 2.2 mm
- Housing material
- Brass, nickel-plated
- Fiber-optic cable
- Protective grounding
- Degree of protection
- IP66
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552818. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
