Festo
552825

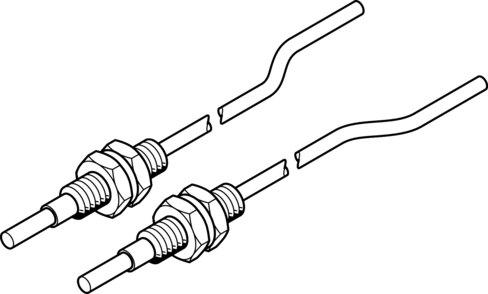

Fiber-optic cable SOOC-TB-P-M4-1-R15
The Festo 552825 is a precision through-beam sensor fiber-optic cable featuring an M4 head size, a 1 m length, and a working range of 120 mm with a minimum object diameter of 0.2 mm. Constructed with a high-alloy stainless steel housing, protective grounding on the fiber-optic cable, and a 2.2 mm outside diameter, this RoHS-compliant component operates within an ambient temperature range of -55 °C to 70 °C. It provides an IP66 degree of protection, a maximum tightening torque of 2 Nm, a minimum bending radius of 15 mm, a CRC rating of 1, and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552825
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552825.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Note on materials
- RoHS compliant
- Method of measurement
- Through-beam sensor
- Minimum object diameter
- 0.2 mm
- Special feature of bre-optic cable
- Precision
- Working range
- 120 mm
- Ambient temperature
- -55 °C...70 °C
- Head size
- M4
- Fibre-optic cable length
- 1 m
- Min. bending radius
- 15 mm
- Max. tightening torque
- 2 Nm
- Outside diameter
- 2.2 mm
- Housing material
- high-alloy stainless steel
- Fiber-optic cable
- Protective grounding
- Degree of protection
- IP66
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552825. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
