Festo
552838

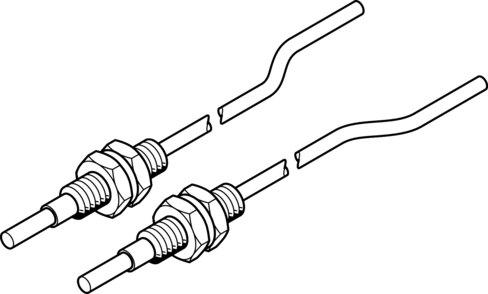

Fiber-optic cable SOOC-DS-M6-1-R25
This Festo industrial component part number 552838 is a diffuse sensor fiber-optic cable featuring an M6x0.75 head size, a 1 m length, and a 140 mm working range capable of detecting a minimum object diameter of 0.1 mm. Constructed with a copper alloy, nickel-plated, and PVC housing providing IP66 protection, the RoHS compliant assembly withstands ambient temperatures from -55 °C to 70 °C and low corrosion stress corresponding to CRC 1. The unit incorporates protective grounding, VDMA24364 Zone III LABS conformity, a 2.2 mm outside diameter, a 25 mm minimum bending radius, and a maximum tightening torque of 3 Nm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552838
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552838.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Note on materials
- RoHS compliant
- Method of measurement
- Diffuse sensor
- Minimum object diameter
- 0.1 mm
- Special feature of bre-optic cable
- Standard
- Working range
- 140 mm
- Ambient temperature
- -55 °C...70 °C
- Head size
- M6x0.75
- Fibre-optic cable length
- 1 m
- Min. bending radius
- 25 mm
- Max. tightening torque
- 3 Nm
- Outside diameter
- 2.2 mm
- Housing material
- Copper alloy | PVC | Nickel-plated
- Fiber-optic cable
- Protective grounding
- Degree of protection
- IP66
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552838. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
