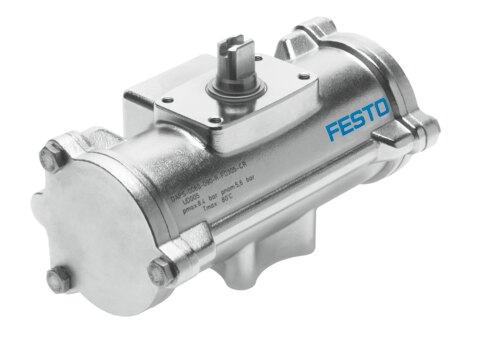

Reference imageConfirm configuration by manufacturer part number.
Festo
552874
Quarter turn actuator DAPS-0480-090-R-F0710-CR
The Festo 552874 is a double-acting industrial component utilizing a kinematic yoke system with a 90-degree swivel angle and a size 0480 valve actuator. Featuring F07 and F10 flange hole patterns, a 24.3 mm shaft connection depth, and ISO 5211 standard valve connectivity, it operates at a nominal pressure of 0.56 MPa (5.6 bar) across an operating pressure range of 0.25 MPa to 0.84 MPa (2.5 bar to 8.4 bar). This un-cushioned unit incorporates VDI/VDE 3845 NAMUR valve connections, supports any mounting position with right-closing direction, and provides functional safety up to SIL 2 in both high and low demand modes without position sensing. Certified by TÜV Nord (certificate 212170801) with ATEX category II 2G gas classification and UKCA markings for Zone 1, Zone 2, Zone 21, and Zone 22 hazardous environments, it complies with the EU explosion protection directive. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552874
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552874.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 0480
- Flange hole pattern
- F07 | F10
- Swivel angle
- 90 deg
- Depth shaft connection
- 24.3 mm
- Standard connection for valve
- ISO 5211
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Kinematic yoke system
- Position sensing
- None
- Closing direction
- Closes to the right
- Valve connection conforms to standard
- VDI/VDE 3845 (NAMUR)
- Safety integrity level (SIL)
- Up to SIL 2 high demand mode | Up to SIL 2 low demand mode
- Operating pressure
- 0.25 MPa...0.84 MPa | 2.5 bar...8.4 bar
- Nominal operating pressure
- 0.56 MPa | 5.6 bar
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Certicate issuing authority
- German Technical Control Board North (TÜV Nord) 212170801
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T6...T3 Gb X
- Type of (ignition) protection for dust
- Ex h IIIC T85°C...T200°C Db X
- Explosive ambient temperature
- -20°C <= Ta <= +60°C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552874. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
