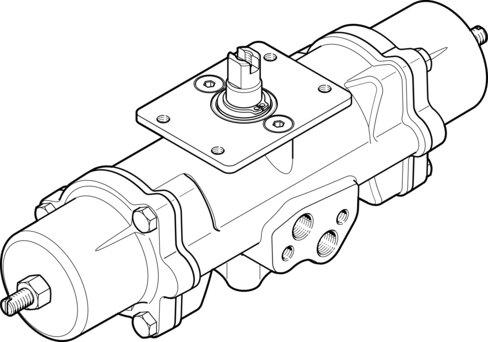

Name: Festo 552877 Quarter turn actuator DAPS-0015-090-RS3-F03-CR
Brand: Festo

Quarter turn actuator DAPS-0015-090-RS3-F03-CR

The Festo part number 552877 is a single-acting industrial component featuring a 0015 valve actuator size with an F03 flange hole pattern, a 90-degree swivel angle, and a 10.2 mm shaft connection depth utilizing a kinematic yoke system without cushioning or position sensing. Operating at a nominal pressure of 0.56 MPa (5.6 bar) within an operating pressure range of 0.42 MPa to 0.84 MPa (4.2 bar to 8.4 bar) and requiring a spring force connection pressure of 0.42 MPa (4.2 bar), this unit closes to the right in any mounting position and provides Safety Integrity Level (SIL) up to SIL 2 in both high and low demand modes. Certified by TÜV Nord (certificate 212170801) with ATEX category II 2G for gas and II 2D for dust, the assembly carries CE and UKCA markings per EU and UK explosion protection directives for deployment in ATEX Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 552877
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 552877.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 0015
Flange hole pattern: F03
Swivel angle: 90 deg
Depth shaft connection: 10.2 mm
Cushioning: No cushioning
Mounting position: Any
Mode of operation: Single-acting
Structural design: Kinematic yoke system
Position sensing: None
Closing direction: Closes to the right
Safety integrity level (SIL): Up to SIL 2 high demand mode | Up to SIL 2 low demand mode
Connection pressure for spring force: 0.42 MPa | 4.2 bar
Operating pressure: 0.42 MPa...0.84 MPa | 4.2 bar...8.4 bar
Nominal operating pressure: 0.56 MPa | 5.6 bar
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Certicate issuing authority: German Technical Control Board North (TÜV Nord) 212170801
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T6...T3 Gb X
Type of (ignition) protection for dust: Ex h IIIC T85°C...T200°C Db X
Explosive ambient temperature: -20°C <= Ta <= +60°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 3 - High corrosion stress
