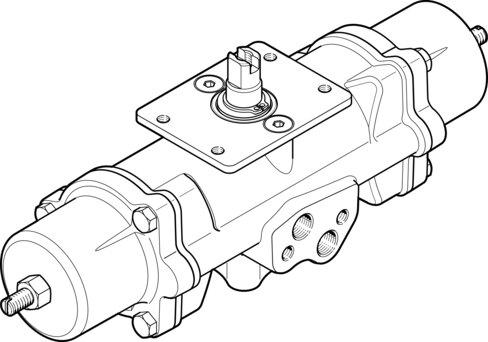

Name: Festo 552878 Quarter turn actuator DAPS-0015-090-RS4-F03-CR
Brand: Festo

Quarter turn actuator DAPS-0015-090-RS4-F03-CR

The Festo part number 552878 is an industrial component featuring an actuator size of 0015, an F03 flange hole pattern, and a 90-degree swivel angle with a 10.2 mm shaft connection depth. Built with a kinematic yoke system, this single-acting component operates without cushioning in any mounting position at a nominal operating pressure of 0.56 MPa (5.6 bar) and an operating pressure range of 0.56 MPa to 0.84 MPa (5.6 bar to 8.4 bar) with a spring force connection pressure of 0.56 MPa (5.6 bar). Certified by TÜV Nord (certificate 212170801), it complies with EU explosion protection (ATEX) and UK EX instructions, carrying CE and UKCA markings for ATEX categories II 2G and II 2D in Zones 1, 2, 21, and 22, and supports up to SIL 2 in both high and low demand modes while closing to the right without position sensing. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 552878
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 552878.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 0015
Flange hole pattern: F03
Swivel angle: 90 deg
Depth shaft connection: 10.2 mm
Cushioning: No cushioning
Mounting position: Any
Mode of operation: Single-acting
Structural design: Kinematic yoke system
Position sensing: None
Closing direction: Closes to the right
Safety integrity level (SIL): Up to SIL 2 high demand mode | Up to SIL 2 low demand mode
Connection pressure for spring force: 0.56 MPa | 5.6 bar
Operating pressure: 0.56 MPa...0.84 MPa | 5.6 bar...8.4 bar
Nominal operating pressure: 0.56 MPa | 5.6 bar
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Certicate issuing authority: German Technical Control Board North (TÜV Nord) 212170801
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T6...T3 Gb X
Type of (ignition) protection for dust: Ex h IIIC T85°C...T200°C Db X
Explosive ambient temperature: -20°C <= Ta <= +60°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 3 - High corrosion stress
