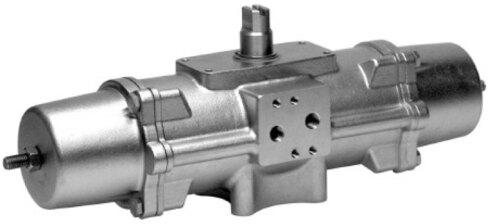

Name: Festo 552881 Quarter turn actuator DAPS-0030-090-RS3-F0305-CR
Brand: Festo

Quarter turn actuator DAPS-0030-090-RS3-F0305-CR

The Festo 552881 is a single-acting industrial component featuring a 0030 valve actuator size, a kinematic yoke system structural design, and a 90-degree swivel angle that closes to the right. It operates at a nominal operating pressure of 0.56 MPa (5.6 bar) with an operating pressure range of 0.42 MPa to 0.84 MPa (4.2 bar to 8.4 bar) and requires a connection pressure for spring force of 0.42 MPa (4.2 bar). Built with an un-cushioned design, 12.1 mm shaft connection depth, and any mounting position, it includes F03 and F05 flange hole patterns conforming to ISO 5211 and VDI/VDE 3845 (NAMUR) standards without position sensing capabilities. Certified by TÜV Nord (certificate 212170801), this unit complies with EU ATEX and UK EX directives for Zones 1, 2, 21, and 22, and achieves Safety Integrity Level (SIL) 2 for both high and low demand modes. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 552881
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 552881.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 0030
Flange hole pattern: F03 | F05
Swivel angle: 90 deg
Depth shaft connection: 12.1 mm
Standard connection for valve: ISO 5211
Cushioning: No cushioning
Mounting position: Any
Mode of operation: Single-acting
Structural design: Kinematic yoke system
Position sensing: None
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Safety integrity level (SIL): Up to SIL 2 high demand mode | Up to SIL 2 low demand mode
Connection pressure for spring force: 0.42 MPa | 4.2 bar
Operating pressure: 0.42 MPa...0.84 MPa | 4.2 bar...8.4 bar
Nominal operating pressure: 0.56 MPa | 5.6 bar
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Certicate issuing authority: German Technical Control Board North (TÜV Nord) 212170801
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T6...T3 Gb X
Type of (ignition) protection for dust: Ex h IIIC T85°C...T200°C Db X
Explosive ambient temperature: -20°C <= Ta <= +60°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
