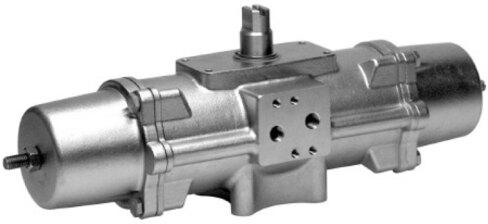

Name: Festo 552884 Quarter turn actuator DAPS-0060-090-RS2-F0507-CR
Brand: Festo

Quarter turn actuator DAPS-0060-090-RS2-F0507-CR

The Festo 552884 is a single-acting industrial component featuring a kinematic yoke system with a 0060 actuator size, F05 and F07 flange hole patterns, and a 90-degree swivel angle. Operating within a 3.5 bar to 8.4 bar pressure range at a nominal operating pressure of 5.6 bar, this unit includes an ISO 5211 valve connection, a VDI/VDE 3845 NAMUR standard valve connection, and a 16.3 mm shaft connection depth with no cushioning. Certified by TÜV Nord (certificate 212170801) and carrying ATEX and UKCA markings for explosion protection in Zones 1, 2, 21, and 22, it supports up to SIL 2 in both high and low demand modes while closing to the right in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 552884
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 552884.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 0060
Flange hole pattern: F05 | F07
Swivel angle: 90 deg
Depth shaft connection: 16.3 mm
Standard connection for valve: ISO 5211
Cushioning: No cushioning
Mounting position: Any
Mode of operation: Single-acting
Structural design: Kinematic yoke system
Position sensing: None
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Safety integrity level (SIL): Up to SIL 2 high demand mode | Up to SIL 2 low demand mode
Connection pressure for spring force: 0.35 MPa | 3.5 bar
Operating pressure: 0.35 MPa...0.84 MPa | 3.5 bar...8.4 bar
Nominal operating pressure: 0.56 MPa | 5.6 bar
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Certicate issuing authority: German Technical Control Board North (TÜV Nord) 212170801
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T6...T3 Gb X
Type of (ignition) protection for dust: Ex h IIIC T85°C...T200°C Db X
Explosive ambient temperature: -20°C <= Ta <= +60°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
