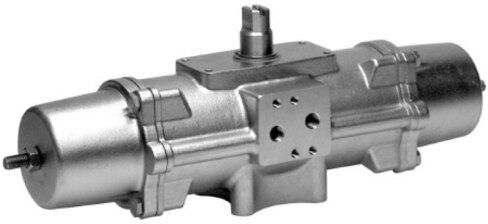

Name: Festo 552892 Quarter turn actuator DAPS-0240-090-RS2-F0710-CR
Brand: Festo

Quarter turn actuator DAPS-0240-090-RS2-F0710-CR

The Festo part number 552892 is a single-acting industrial component featuring a 0240 valve actuator size, a kinematic yoke system structural design, and a 90-degree swivel angle that closes to the right. It operates at a nominal pressure of 0.56 MPa with an operating pressure range of 0.35 MPa to 0.84 MPa, a spring force connection pressure of 0.35 MPa, an F07 or F10 flange hole pattern, a 24.3 mm shaft connection depth, and an ISO 5211 standard valve connection that conforms to VDI/VDE 3845 NAMUR specifications without cushioning or position sensing. Certified by TÜV Nord under certificate 212170801, this un-cushioned unit is rated for functional safety up to SIL 2 in both high and low demand modes and carries CE and UKCA markings for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 hazardous locations with any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 552892
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 552892.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 0240
Flange hole pattern: F07 | F10
Swivel angle: 90 deg
Depth shaft connection: 24.3 mm
Standard connection for valve: ISO 5211
Cushioning: No cushioning
Mounting position: Any
Mode of operation: Single-acting
Structural design: Kinematic yoke system
Position sensing: None
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Safety integrity level (SIL): Up to SIL 2 high demand mode | Up to SIL 2 low demand mode
Connection pressure for spring force: 0.35 MPa | 3.5 bar
Operating pressure: 0.35 MPa...0.84 MPa | 3.5 bar...8.4 bar
Nominal operating pressure: 0.56 MPa | 5.6 bar
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Certicate issuing authority: German Technical Control Board North (TÜV Nord) 212170801
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T6...T3 Gb X
Type of (ignition) protection for dust: Ex h IIIC T85°C...T200°C Db X
Explosive ambient temperature: -20°C <= Ta <= +60°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
