Festo
552928

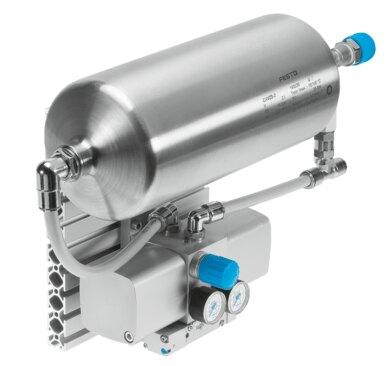

Pressure booster DPA-40-10-CRVZS2
The Festo part number 552928 is a double-piston pressure booster featuring a 40 mm piston diameter, a 2 l compressed air reservoir, a pressure gauge, and an integrated check valve configured for installation in any mounting position. It operates with an inlet pressure of 0.2 MPa to 0.8 MPa (2 bar to 8 bar / 29 psi to 116 psi) and delivers an output pressure ranging from 0.45 MPa to 1 MPa (4.5 bar to 10 bar / 65.25 psi to 145 psi) using compressed air as per ISO 8573-1:2010 [7:3:4] without oil lubrication. This component is classified with a corrosion resistance class of 2 for moderate corrosion stress, VDMA24364-B1/B2-L LABS conformity, and an ambient and storage temperature range of 5 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552928
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552928.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Piston diameter
- 40 mm
- Volume
- 2 l
- Mounting position
- Any
- Structural design
- Double-piston pressure booster | With compressed air reservoir | with pressure gauge | With check valve
- Pressure gauge
- with pressure gauge
- Output pressure 2
- 0.45 MPa...1 MPa | 65.25 psi...145 psi
- Outlet pressure 2
- 4.5 bar...10 bar
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar | 36.25 psi...116 psi
- Pressure regulation range MPa
- 0.45 MPa...1 MPa
- Pressure regulation range
- 4.5 bar...10 bar
- Pressure regulation range psi
- 65.25 psi...145 psi
- Inlet pressure 1
- 2 bar...8 bar
- Inlet pressure 1 MPa
- 0.2 MPa...0.8 MPa
- Inlet pressure 1 psi
- 29 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:3:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 4400 g
- Type of mounting
- With slot nuts
- Pneumatic connection 1
- QS-10
- Pneumatic connection 2
- KD4
- Pneumatic connection 3
- Muffler
