Festo
552929

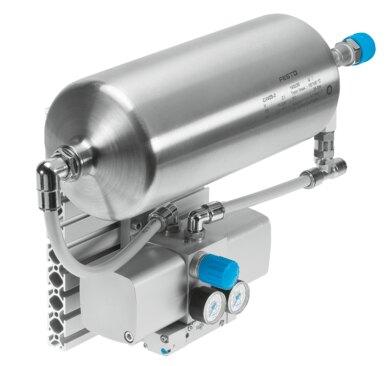

Pressure booster DPA-40-16-CRVZS2
The Festo 552929 is a double-piston pressure booster featuring a 40 mm piston diameter, a 2 l compressed air reservoir, an integrated pressure gauge, and a check valve for any mounting position. It operates with an inlet pressure of 2 bar to 8 bar (0.2 MPa to 0.8 MPa, 29 psi to 116 psi) and delivers an outlet pressure 2 ranging from 4.5 bar to 16 bar (0.45 MPa to 1.6 MPa, 65.25 psi to 232 psi) using compressed air conforming to ISO 8573-1:2010 [7:3:4] without oil lubrication. Built with a corrosion resistance class of CRC 2 and VDMA24364-B1/B2-L LABS conformity, this component functions within a storage and ambient temperature range of 5 °C to 60 °C. Submit part number 552929, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552929
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552929.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Piston diameter
- 40 mm
- Volume
- 2 l
- Mounting position
- Any
- Structural design
- Double-piston pressure booster | With compressed air reservoir | with pressure gauge | With check valve
- Pressure gauge
- with pressure gauge
- Output pressure 2
- 0.45 MPa...1.6 MPa | 65.25 psi...232 psi
- Outlet pressure 2
- 4.5 bar...16 bar
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar | 36.25 psi...116 psi
- Pressure regulation range MPa
- 0.45 MPa...1.6 MPa
- Pressure regulation range
- 4.5 bar...16 bar
- Pressure regulation range psi
- 65.25 psi...232 psi
- Inlet pressure 1
- 2 bar...8 bar
- Inlet pressure 1 MPa
- 0.2 MPa...0.8 MPa
- Inlet pressure 1 psi
- 29 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:3:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 4400 g
- Type of mounting
- With slot nuts
- Pneumatic connection 1
- QS-10
- Pneumatic connection 2
- KD4
- Pneumatic connection 3
- Muffler
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552929. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
