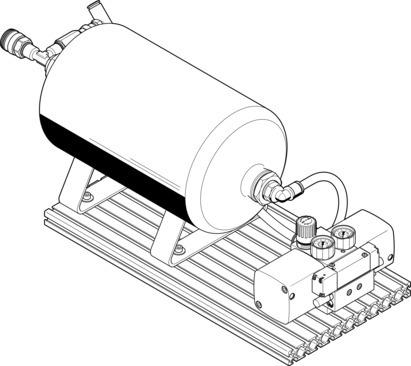

Name: Festo 552930 Pressure booster DPA-40-10-CRVZS5
Brand: Festo

Pressure booster DPA-40-10-CRVZS5

The Festo part number 552930 is a double-piston pressure booster featuring a 40 mm piston diameter, a 5 l compressed air reservoir, an integrated pressure gauge, and a check valve designed for a condensate drain down mounting position. This component operates with an inlet pressure range of 2 bar to 8 bar (0.2 MPa to 0.8 MPa, 29 psi to 116 psi) and delivers an output pressure range of 4.5 bar to 10 bar (0.45 MPa to 1 MPa, 65.25 psi to 145 psi) using compressed air as per ISO 8573-1:2010 [7:3:4] without oil lubrication capability. Certified with CE and UKCA markings as per pressure equipment regulations, it features a CRC of 2 for moderate corrosion stress and LABS conformity to VDMA24364-B1/B2-L. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 552930
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 552930.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Piston diameter: 40 mm
Volume: 5 l
Mounting position: Condensate drain down
Structural design: Double-piston pressure booster | With compressed air reservoir | with pressure gauge | With check valve
Pressure gauge: with pressure gauge
Output pressure 2: 0.45 MPa...1 MPa | 65.25 psi...145 psi
Outlet pressure 2: 4.5 bar...10 bar
Operating pressure: 0.25 MPa...0.8 MPa | 2.5 bar...8 bar | 36.25 psi...116 psi
Pressure regulation range MPa: 0.45 MPa...1 MPa
Pressure regulation range: 4.5 bar...10 bar
Pressure regulation range psi: 65.25 psi...145 psi
Inlet pressure 1: 2 bar...8 bar
Inlet pressure 1 MPa: 0.2 MPa...0.8 MPa
Inlet pressure 1 psi: 29 psi...116 psi
CE marking (see declaration of conformity): as per EU pressure equipment directive
UKCA marking (see declaration of conformity): according to UK regulations for pressure equipment
Operating medium: Compressed air as per ISO 8573-1:2010 [7:3:4]
Information on operating and pilot media: Operation with oil lubrication not possible
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: 5 °C...60 °C
Ambient temperature: 5 °C...60 °C
Max. tightening torque for condensate drain: 27 Nm
Product weight: 7300 g
Type of mounting: With slot nuts

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 552930. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
