Name: Festo 552932 Pressure booster DPA-63-10-CRVZS10
Brand: Festo

Pressure booster DPA-63-10-CRVZS10

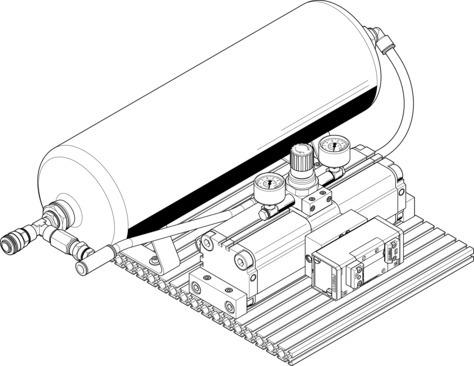

The Festo 552932 is a double-piston pressure booster featuring an integrated compressed air reservoir, pressure gauge, check valve, and a 63 mm piston diameter with a 10 l volume. Designed for operation with compressed air as per ISO 8573-1:2010 [7:3:4] where oil lubrication is not possible, it accommodates an inlet pressure of 2 bar to 8 bar (0.2 MPa to 0.8 MPa, 29 psi to 116 psi) and provides an output pressure regulation range of 4 bar to 10 bar (0.4 MPa to 1 MPa, 58 psi to 145 psi). The unit incorporates a condensate drain down mounting position, exhibits a moderate corrosion resistance class (CRC 2) with VDMA24364-B1/B2-L LABS conformity, and bears CE and UKCA markings per applicable pressure equipment directives and regulations. Submit the exact part number, quantity, and application requirements for an official quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 552932
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 552932.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Piston diameter: 63 mm
Volume: 10 l
Mounting position: Condensate drain down
Structural design: Double-piston pressure booster | With compressed air reservoir | with pressure gauge | With check valve
Pressure gauge: with pressure gauge
Output pressure 2: 0.4 MPa...1 MPa | 58 psi...145 psi
Outlet pressure 2: 4 bar...10 bar
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
Pressure regulation range MPa: 0.4 MPa...1 MPa
Pressure regulation range: 4 bar...10 bar
Pressure regulation range psi: 58 psi...145 psi
Inlet pressure 1: 2 bar...8 bar
Inlet pressure 1 MPa: 0.2 MPa...0.8 MPa
Inlet pressure 1 psi: 29 psi...116 psi
CE marking (see declaration of conformity): as per EU pressure equipment directive
UKCA marking (see declaration of conformity): according to UK regulations for pressure equipment
Operating medium: Compressed air as per ISO 8573-1:2010 [7:3:4]
Information on operating and pilot media: Operation with oil lubrication not possible
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: 5 °C...60 °C
Ambient temperature: 5 °C...60 °C
Max. tightening torque for condensate drain: 27 Nm
Product weight: 16000 g
Type of mounting: With slot nuts

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 552932. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
