Festo
552933

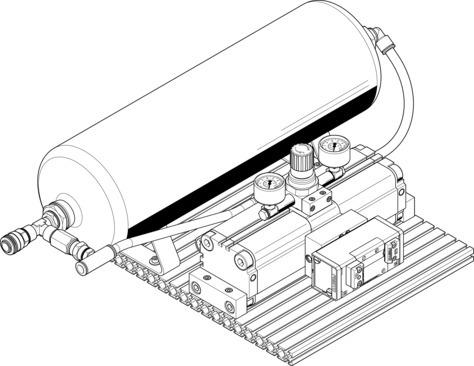

Pressure booster DPA-63-16-CRVZS10
The Festo part number 552933 is a double-piston pressure booster featuring a 63 mm piston diameter, a 10 l compressed air reservoir, an integrated pressure gauge, and a check valve designed for a condensate drain down mounting position. This industrial component accepts an inlet pressure 1 of 0.2 MPa to 0.8 MPa (2 bar to 8 bar, 29 psi to 116 psi) and delivers an output pressure 2 ranging from 0.4 MPa to 1.6 MPa (4 bar to 16 bar, 58 psi to 232 psi). It operates with compressed air as per ISO 8573-1:2010 [7:3:4] without oil lubrication, carrying CE and UKCA markings per pressure equipment directives along with a corrosion resistance class (CRC) of 2 and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552933
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552933.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Piston diameter
- 63 mm
- Volume
- 10 l
- Mounting position
- Condensate drain down
- Structural design
- Double-piston pressure booster | With compressed air reservoir | with pressure gauge | With check valve
- Pressure gauge
- with pressure gauge
- Output pressure 2
- 0.4 MPa...1.6 MPa | 58 psi...232 psi
- Outlet pressure 2
- 4 bar...16 bar
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Pressure regulation range MPa
- 0.4 MPa...1.6 MPa
- Pressure regulation range
- 4 bar...16 bar
- Pressure regulation range psi
- 58 psi...232 psi
- Inlet pressure 1
- 2 bar...8 bar
- Inlet pressure 1 MPa
- 0.2 MPa...0.8 MPa
- Inlet pressure 1 psi
- 29 psi...116 psi
- CE marking (see declaration of conformity)
- as per EU pressure equipment directive
- UKCA marking (see declaration of conformity)
- according to UK regulations for pressure equipment
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:3:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Max. tightening torque for condensate drain
- 27 Nm
- Product weight
- 16000 g
- Type of mounting
- With slot nuts
