Festo

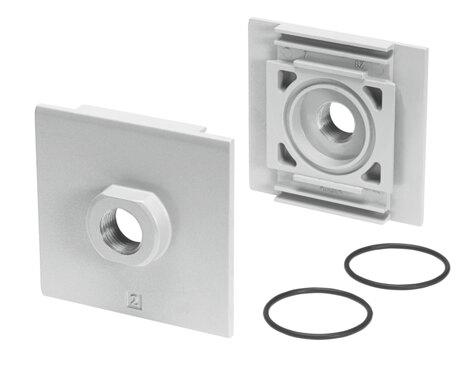

552954
Sub-base-SET MS9-AGD
The Festo 552954 is a size 9 industrial component from the MS series featuring G1/2 pneumatic connection 1 and G1/2 pneumatic connection 2. Constructed with a die-cast aluminum sub-base, die-cast aluminum hollow bolt, and NBR seals, this RoHS-compliant unit weighs 300 g and operates within a medium temperature range of -10 °C to 60 °C. It provides a corrosion resistance class of 2 for moderate corrosion stress and maintains VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552954
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552954.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 9
- Series
- MS
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Product weight
- 300 g
- Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- G1/2
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
- Seals material
- NBR
- Hollow bolt material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552954. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
