Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

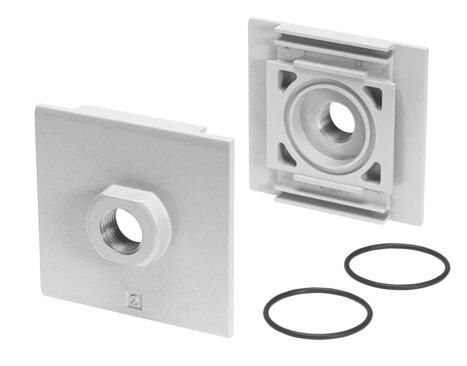

Reference imageConfirm configuration by manufacturer part number.
Festo
552962
Sub-base-SET MS9-AQU
The Festo 552962 is an industrial component from the MS series featuring a size 9 profile and a product weight of 400 g. Constructed with a die-cast aluminum sub-base and hollow bolt alongside NBR seals, it provides 1 1/4 NPT pneumatic connections for both port 1 and port 2 while supporting a medium temperature range of -10 °C to 60 °C. This RoHS-compliant unit achieves a CRC rating of 2 for moderate corrosion stress and conforms to VDMA24364-B1/B2-L LABS standards. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552962
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552962.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 9
- Series
- MS
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Product weight
- 400 g
- Pneumatic connection 1
- 1 1/4 NPT
- Pneumatic connection 2
- 1 1/4 NPT
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
- Seals material
- NBR
- Hollow bolt material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552962. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
