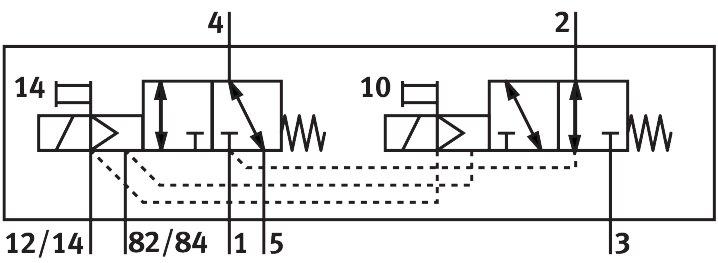

Reference imageConfirm configuration by manufacturer part number.
Festo
553112
Air solenoid valve VMPA1-M1H-HU-PI
The Festo 553112 is a 10 mm electrical industrial component featuring a piloted, reversible 2x3/2 open/closed monostable poppet valve design with a mechanical spring reset and soft sealing principle. Operating on 24V DC within an operating pressure range of -0.9 bar to 10 bar, this unit delivers a normal nominal flow rate of 140 l/min to 190 l/min and incorporates a signal status display alongside detenting and non-detenting manual override. It provides IP65 protection in the mounted state according to IEC 60529 and is c UL us-recognized under UL certificate MH19482 for versatile mounting positions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553112
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553112.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2, open/closed, monostable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 140 l/min...190 l/min
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- UL MH19482
- Degree of protection
- IP65 | In mounted state | As per IEC 60529
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Flow direction
- Reversible
- Lap
- Negative overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.4 MPa...0.8 MPa
- Pilot pressure
- 4 bar...8 bar
- Suitability for vacuum
- Yes
- Note on standard nominal ow rate
- 1->2: 190 l/min | 1->4: 140 l/min
- Standard nominal ow rate with QS-6
- 140 l/min...190 l/min
- Switching time off
- 10 ms
- On switching time
- 10 ms
- Max. positive test pulse with 0 signal
- 400 µs
- Max. negative test pulse on 1 signal
- 200 µs
- Permissible voltage uctuations
- +/- 25%
