Festo
553113

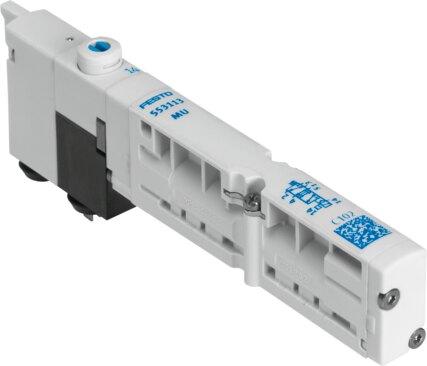

Air solenoid valve VMPA1-M1H-MU-PI
The Festo 553113 is a 5/2-way monostable electrical industrial component featuring a 10 mm valve size, a poppet valve structural design with a mechanical spring reset, and a soft sealing principle. It delivers a normal nominal flow rate of 140 l/min to 190 l/min at an operating pressure ranging from -0.09 MPa to 1 MPa ( -0.9 bar to 10 bar) and operates on 24V DC with a piloted type of control requiring a pilot pressure of 0.4 MPa to 0.8 MPa (4 bar to 8 bar). Certified by c UL us - recognized (OL) under certificate issuing authority UL MH19482, this IP65-rated unit provides a reversible flow direction, negative overlap lap, detenting and non-detenting manual override, signal status display, and any mounting position. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553113
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553113.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 140 l/min...190 l/min
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- UL MH19482
- Degree of protection
- IP65 | In mounted state | As per IEC 60529
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Flow direction
- Reversible
- Lap
- Negative overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.4 MPa...0.8 MPa
- Pilot pressure
- 4 bar...8 bar
- Suitability for vacuum
- Yes
- Note on standard nominal ow rate
- 1->2: 190 l/min | 1->4: 140 l/min
- Standard nominal ow rate with QS-6
- 140 l/min...190 l/min
- Switching time off
- 14 ms
- On switching time
- 10 ms
- Max. positive test pulse with 0 signal
- 400 µs
- Max. negative test pulse on 1 signal
- 200 µs
- Permissible voltage uctuations
- +/- 25%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553113. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
