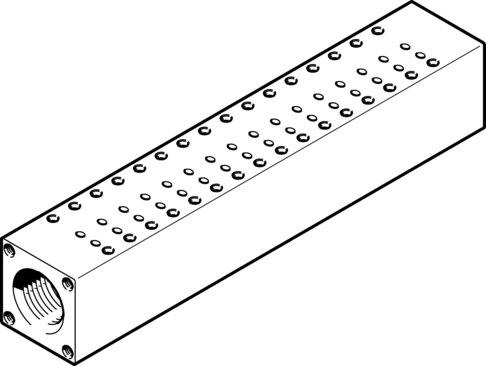

Reference imageConfirm configuration by manufacturer part number.
Festo
553125
Manifold rail MHJ9-P16
The Festo 553125 is an industrial component featuring a 10 mm width dimension and a wrought aluminum alloy, anodized manifold rail material. Weighing 428 g with RoHS compliant materials, this unit includes a G1/2 pneumatic connection 1 and an M7 pneumatic connection 2, mounts via a retaining bracket, and provides a corrosion resistance class (CRC) of 2 along with VDMA24364-B2-L LABS conformity for up to 16 maximum valve positions, including customer-specific version options. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553125
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553125.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 10 mm
- Max. no. of valve positions
- 16 | Versions according to customer specications possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Product weight
- 428 g
- Type of mounting
- With retaining bracket
- Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- M7
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553125. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
