Festo
553208

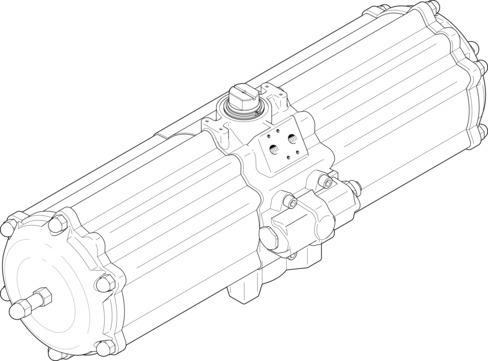

Quarter turn actuator DAPS-1920-090-RS2-F16-T6
The Festo 553208 is a single-acting industrial component featuring a kinematic yoke system with a 1920 valve actuator size, an F16 flange hole pattern, and a 90-degree swivel angle. Operating within a pressure range of 0.35 MPa to 0.84 MPa, this non-cushioned unit includes an ISO 5211 valve connection, VDI/VDE 3845 NAMUR compliance, and a safety integrity level up to SIL 2 low demand mode. Certified with a CE marking as per the EU explosion protection directive, the part accommodates a nominal operating pressure of 0.56 MPa and a maximum swivel frequency of 1 Hz at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553208
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553208.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 1920
- Flange hole pattern
- F16
- Swivel angle
- 90 deg
- End-position adjusting range at 0°
- -5 deg...5 deg
- End-position adjusting range at nominal swivel angle
- 85 deg...95 deg
- Depth shaft connection
- 49 mm
- Standard connection for valve
- ISO 5211
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Single-acting
- Structural design
- Kinematic yoke system
- Position sensing
- None
- Closing direction
- Closes to the right
- Valve connection conforms to standard
- VDI/VDE 3845 (NAMUR)
- Safety integrity level (SIL)
- Up to SIL 2 low demand mode
- Connection pressure for spring force
- 0.35 MPa | 3.5 bar
- Operating pressure
- 0.35 MPa...0.84 MPa | 3.5 bar...8.4 bar
- Nominal operating pressure
- 0.56 MPa | 5.6 bar
- Max. swivel frequency at 6 bar
- 1 Hz
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Certicate issuing authority
- German Technical Control Board North (TÜV Nord) 212170801
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T6...T3 Gb X
- Type of (ignition) protection for dust
- Ex h IIIC T85°C...T200°C Db X
