Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

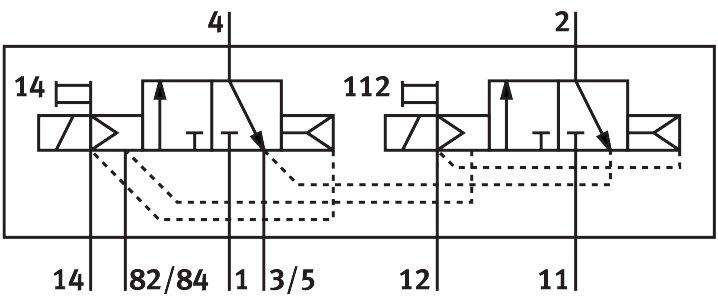

Reference imageConfirm configuration by manufacturer part number.
Festo
553259
Air solenoid valve CPV14-M1H-2X3-GLS-K-1/8
The Festo part number 553259 is an electrical piston gate valve featuring a 2x3/2 closed, monostable function with a 14 mm valve size, a 6 mm nominal width, and a normal nominal flow rate of 800 l/min normalized to DIN 1343. Operating at 24V DC within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), this piloted component utilizes a soft sealing principle, a positive overlap lap, and a pneumatic spring reset method with G1/8 pneumatic working ports. It provides an IP65 degree of protection, non-reversible flow direction, unthrottlable exhaust air function, internal or external pilot air supply ports, and a manual override supporting both detenting and non-detenting operation in any mounting position. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553259
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553259.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 800 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Degree of protection
- IP65
- Nominal width
- 6 mm
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External | Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- b-value
- 0.42
- C value
- 3.2 l/sbar
- Switching time off
- 30 ms
- On switching time
- 24 ms
- Duty cycle
- 100% in combination with holding current reduction
- Electrical power consumption
- 0.65 W
- Max. positive test pulse with 0 signal
- 1400 µs
- Max. negative test pulse on 1 signal
- 400 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553259. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
