Festo
553260

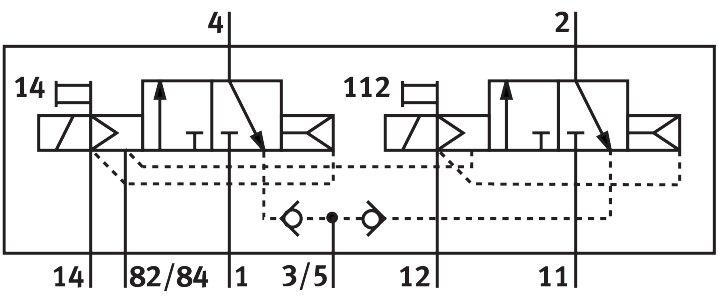

Air solenoid valve CPV10-M1H-2X3-GLS-Y-M7
The Festo 553260 is an electrical industrial component featuring a 10 mm valve size with a 2x3/2 closed, monostable piston gate valve design utilizing soft sealing and positive overlap. Operating at 24V DC within a pressure range of 0.01 MPa to 1 MPa (0.1 bar to 10 bar), this piloted unit delivers a normal nominal flow rate of 400 l/min through M7 pneumatic working ports with an IP65 degree of protection. It incorporates a pneumatic spring reset, non-reversible flow direction, unthrottled exhaust air function, internal or external pilot air supply ports requiring 0.3 MPa to 0.8 MPa pilot pressure, and both detenting and non-detenting manual override options for any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553260
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553260.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 400 l/min
- Pneumatic working port
- M7
- Operating voltage
- 24V DC
- Operating pressure
- 0.01 MPa...1 MPa | 0.1 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Degree of protection
- IP65
- Nominal width
- 4 mm
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External | Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- b-value
- 0.4
- C value
- 1.6 l/sbar
- Switching time off
- 25 ms
- On switching time
- 17 ms
- Duty cycle
- 100% in combination with holding current reduction
- Electrical power consumption
- 0.46 W
- Max. positive test pulse with 0 signal
- 1400 µs
- Max. negative test pulse on 1 signal
- 700 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553260. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
