Festo
553279

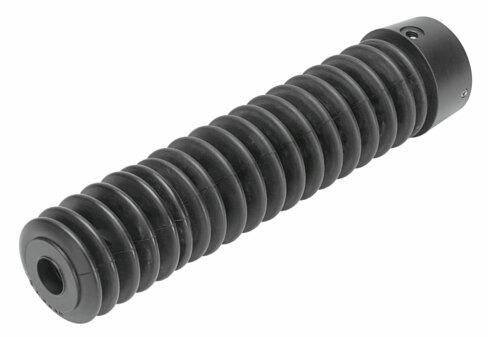

Bellows kit DADB-V6-32-S251-300
The Festo 553279 is a round industrial component featuring a size 32 design with a 38 mm outside diameter, a stroke range of 251 mm to 300 mm, and a 96 mm piston rod extension. Built with a protective bellows kit, ducted exhaust, NBR seals and bellows, PA-reinforced adaption parts, and high-alloy stainless steel threaded pins, this part provides IP54 protection, CRC 3 high corrosion stress resistance, VDMA24364-B2-L LABS conformity, and media resistance to dust, chips, oils, grease, and petrol. It functions within an ambient temperature range of -10 °C to 80 °C, features a 79 g product weight, accommodates any mounting position via push-fitted or threaded pin installation, and includes a G1/8 pneumatic connection alongside RoHS compliant materials. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553279
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553279.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 38 mm
- Size
- 32
- Stroke range
- 251 mm...300 mm
- Piston rod extension
- 96 mm
- Design
- Round
- Mounting position
- Any
- Structural design
- Protective bellows kit | With ducted exhaust
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Media resistance
- Dust | Chips | Oils | Grease | Petrol
- Degree of protection
- IP54
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 79 g
- Type of mounting
- Push-tted | With threaded pin
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Adaption parts material
- PA-reinforced
- Seals material
- NBR
- Bellows material
- NBR
- Threaded pin material
- high-alloy stainless steel
