Festo
553321

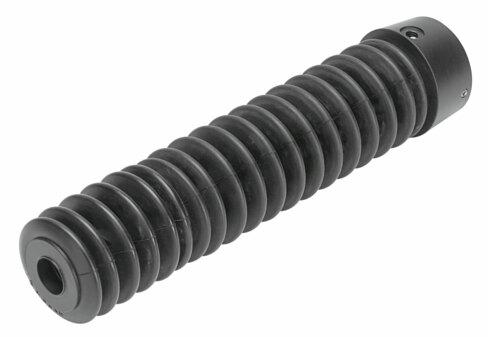

Bellows kit DADB-V6-50-S301-350
The Festo part number 553321 is a round industrial component featuring a size 50 design with an outside diameter of 57 mm and a piston rod extension of 97 mm. This protective bellows kit incorporates a ducted exhaust, NBR seals and bellows, PA-reinforced adaption parts, and high-alloy stainless steel threaded pins, achieving a CRC of 3 for high corrosion stress alongside an IP54 degree of protection against dust, chips, oils, grease, and petrol. Operating within an ambient temperature range of -10 °C to 80 °C, the RoHS-compliant assembly weighs 166 g, supports any mounting position via push-fitted or threaded pin installation, and features a G1/4 pneumatic connection with VDMA24364-B2-L LABS conformity for stroke ranges between 301 mm and 350 mm. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553321
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553321.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 57 mm
- Size
- 50
- Stroke range
- 301 mm...350 mm
- Piston rod extension
- 97 mm
- Design
- Round
- Mounting position
- Any
- Structural design
- Protective bellows kit | With ducted exhaust
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Media resistance
- Dust | Chips | Oils | Grease | Petrol
- Degree of protection
- IP54
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 166 g
- Type of mounting
- Push-tted | With threaded pin
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Adaption parts material
- PA-reinforced
- Seals material
- NBR
- Bellows material
- NBR
- Threaded pin material
- high-alloy stainless steel
