Festo
553327

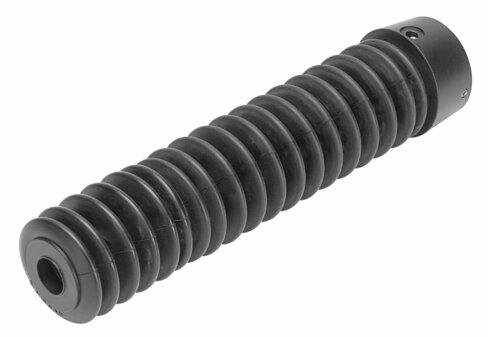

Bellows kit DADB-V6-50-S426-475
The Festo 553327 is a round industrial component featuring a 57 mm outside diameter, size 50 dimensions, a 426 mm to 475 mm stroke range, and a 126 mm piston rod extension with a ducted exhaust and protective bellows kit. Constructed with PA-reinforced adaptation parts, NBR seals and bellows, and a high-alloy stainless steel threaded pin, this RoHS-compliant unit delivers IP54-rated protection against dust, chips, oils, grease, and petrol across an ambient temperature range of -10 °C to 80 °C under high corrosion stress (CRC 3). Weighing 204 g, it supports any mounting position via push-fitting or threaded pin alongside a G1/4 pneumatic connection and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553327
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553327.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 57 mm
- Size
- 50
- Stroke range
- 426 mm...475 mm
- Piston rod extension
- 126 mm
- Design
- Round
- Mounting position
- Any
- Structural design
- Protective bellows kit | With ducted exhaust
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Media resistance
- Dust | Chips | Oils | Grease | Petrol
- Degree of protection
- IP54
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 204 g
- Type of mounting
- Push-tted | With threaded pin
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Adaption parts material
- PA-reinforced
- Seals material
- NBR
- Bellows material
- NBR
- Threaded pin material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553327. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
