Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

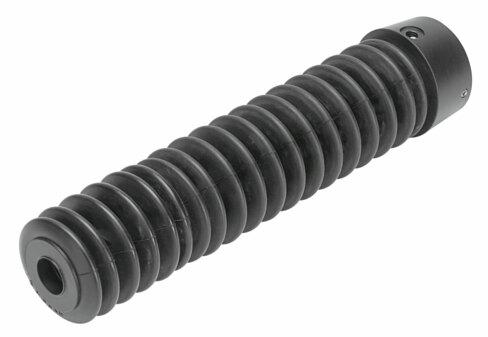

Reference imageConfirm configuration by manufacturer part number.
Festo
553357
Bellows kit DADB-V6-80-S176-250
The Festo 553357 is a round industrial component featuring a size 80 specification with a 93 mm outside diameter, a stroke range of 176 mm to 250 mm, and a 62 mm piston rod extension. Weighing 193 g, this protective bellows kit incorporates ducted exhaust, NBR seals and bellows, PA-reinforced adaption parts, and a high-alloy stainless steel threaded pin supporting push-fitted or threaded pin mounting in any position with a G1/4 pneumatic connection. It provides IP54 protection, CRC 3 high corrosion stress resistance, VDMA24364-B2-L LABS conformity, RoHS compliance, and resistance to dust, chips, oils, grease, and petrol across an ambient temperature range of -10 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553357
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553357.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 93 mm
- Size
- 80
- Stroke range
- 176 mm...250 mm
- Piston rod extension
- 62 mm
- Design
- Round
- Mounting position
- Any
- Structural design
- Protective bellows kit | With ducted exhaust
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Media resistance
- Dust | Chips | Oils | Grease | Petrol
- Degree of protection
- IP54
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 193 g
- Type of mounting
- Push-tted | With threaded pin
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Adaption parts material
- PA-reinforced
- Seals material
- NBR
- Bellows material
- NBR
- Threaded pin material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553357. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
