Festo
553359

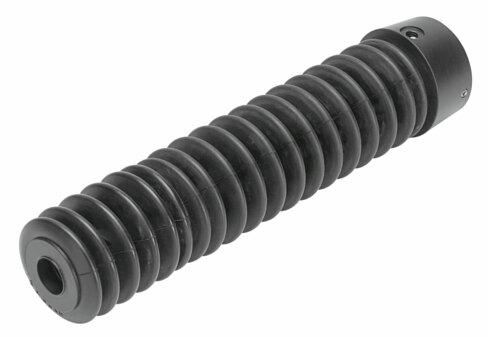

Bellows kit DADB-V6-80-S251-300
The Festo part number 553359 is a round industrial component featuring a size 80 designation, a 93 mm outside diameter, a 251 mm to 300 mm stroke range, a 74 mm piston rod extension, and a product weight of 231 g. Constructed with a protective bellows kit and ducted exhaust, it provides IP54 protection, resistance to dust, chips, oils, grease, and petrol, a corrosion resistance class of 3, VDMA24364-B2-L LABS conformity, and RoHS compliant materials including PA-reinforced adaption parts, NBR seals and bellows, and high-alloy stainless steel threaded pins. It operates within an ambient temperature range of -10 °C to 80 °C, utilizes push-fitted or threaded pin mounting in any position, and includes a G1/4 pneumatic connection. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553359
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553359.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 93 mm
- Size
- 80
- Stroke range
- 251 mm...300 mm
- Piston rod extension
- 74 mm
- Design
- Round
- Mounting position
- Any
- Structural design
- Protective bellows kit | With ducted exhaust
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Media resistance
- Dust | Chips | Oils | Grease | Petrol
- Degree of protection
- IP54
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 231 g
- Type of mounting
- Push-tted | With threaded pin
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Adaption parts material
- PA-reinforced
- Seals material
- NBR
- Bellows material
- NBR
- Threaded pin material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553359. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
