Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

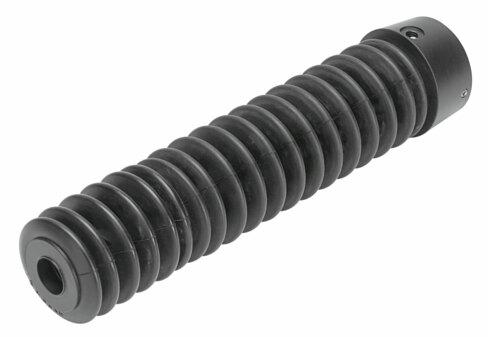

Reference imageConfirm configuration by manufacturer part number.
Festo
553373
Bellows kit DADB-V6-100-S51-125
The Festo 553373 is a round industrial component featuring a size 100 designation, a 93 mm outside diameter, and a stroke range of 51 mm to 125 mm with a 37 mm piston rod extension. This protective bellows kit includes ducted exhaust, PA-reinforced adaption parts, NBR seals and bellows, and a high-alloy stainless steel threaded pin, achieving IP54 protection and CRC 3 high corrosion stress resistance while withstanding dust, chips, oils, grease, and petrol at ambient temperatures from -10 °C to 80 °C. It supports any mounting position via push-fitted or threaded pin installation and features a G1/4 pneumatic connection with RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553373
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553373.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 93 mm
- Size
- 100
- Stroke range
- 51 mm...125 mm
- Piston rod extension
- 37 mm
- Design
- Round
- Mounting position
- Any
- Structural design
- Protective bellows kit | With ducted exhaust
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Media resistance
- Dust | Chips | Oils | Grease | Petrol
- Degree of protection
- IP54
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 152 g
- Type of mounting
- Push-tted | With threaded pin
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Adaption parts material
- PA-reinforced
- Seals material
- NBR
- Bellows material
- NBR
- Threaded pin material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553373. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
