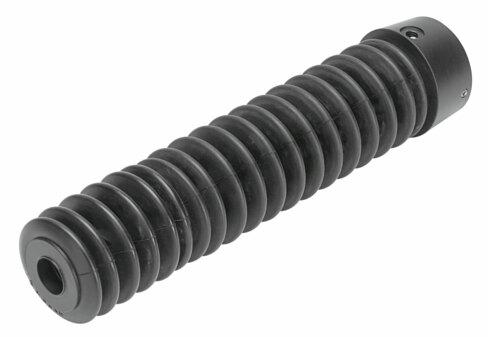

Reference imageConfirm configuration by manufacturer part number.
Festo
553403
Bellows kit DADB-S1-16-S101-150
The Festo 553403 is a round industrial component featuring a size 16 design with a 22 mm outside diameter, a stroke range of 101 mm to 150 mm, and a 48 mm piston rod extension. Featuring a structural design that includes a protective bellows kit and ducted exhaust, it is constructed with PA-reinforced adaptation parts, NBR seals and bellows, and a high-alloy stainless steel threaded pin supporting an M5 pneumatic connection with any mounting position. The unit provides CRC 3 high corrosion stress resistance, VDMA24364-B2-L LABS conformity, RoHS compliant materials, and media resistance against dust, chips, oils, grease, and petrol within an ambient temperature range of -10 °C to 80 °C, while maintaining a product weight of 13 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553403
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553403.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 22 mm
- Size
- 16
- Stroke range
- 101 mm...150 mm
- Piston rod extension
- 48 mm
- Design
- Round
- Mounting position
- Any
- Structural design
- Protective bellows kit | With ducted exhaust
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 5% by mass of copper, zinc or nickel are excluded | from use. The exceptions are nickel in steel, chemically nickel-plated | surfaces, printed circuit boards, cables, electrical plug connectors and | coils.
- Media resistance
- Dust | Chips | Oils | Grease | Petrol
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 13 g
- Type of mounting
- With threaded pin | With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Adaption parts material
- PA-reinforced
- Seals material
- NBR
- Bellows material
- NBR
- Threaded pin material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553403. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
