Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
553409

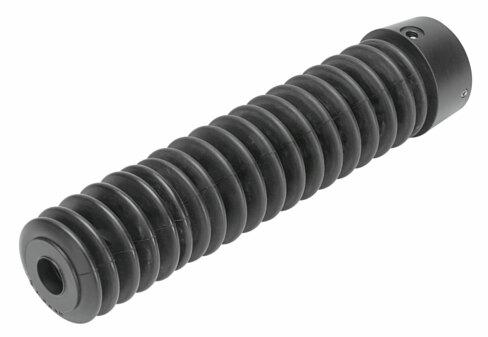

Bellows kit DADB-S1-20-S51-100
The Festo 553409 is a round industrial component featuring a size 20 designation, a 29 mm outside diameter, a stroke range of 51 mm to 100 mm, and a 34 mm piston rod extension with an M5 pneumatic connection. Built with a protective bellows kit, ducted exhaust, PA-reinforced adaption parts, NBR seals and bellows, and a high-alloy stainless steel threaded pin, this 32 g unit supports any mounting position via threaded pin or internal thread. It offers a corrosion resistance class of 3 for high corrosion stress, VDMA24364-B2-L LABS conformity, RoHS compliance, and media resistance to dust, chips, oils, grease, and petrol within an ambient temperature range of -10 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553409
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553409.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 29 mm
- Size
- 20
- Stroke range
- 51 mm...100 mm
- Piston rod extension
- 34 mm
- Design
- Round
- Mounting position
- Any
- Structural design
- Protective bellows kit | With ducted exhaust
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 5% by mass of copper, zinc or nickel are excluded | from use. The exceptions are nickel in steel, chemically nickel-plated | surfaces, printed circuit boards, cables, electrical plug connectors and | coils.
- Media resistance
- Dust | Chips | Oils | Grease | Petrol
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 32 g
- Type of mounting
- With threaded pin | With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Adaption parts material
- PA-reinforced
- Seals material
- NBR
- Bellows material
- NBR
- Threaded pin material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553409. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
