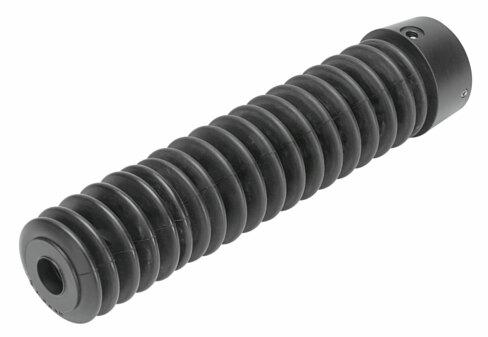

Reference imageConfirm configuration by manufacturer part number.
Festo
553419
Bellows kit DADB-S1-20-S301-350
The Festo 553419 is a round industrial component featuring a protective bellows kit with ducted exhaust, a size 20 designation, a 29 mm outside diameter, and a stroke range of 301 mm to 350 mm with a 101 mm piston rod extension. Constructed with NBR seals and bellows, PA-reinforced adaption parts, and a high-alloy stainless steel threaded pin, this 100 g assembly offers media resistance to dust, chips, oils, grease, and petrol along with a CRC 3 high corrosion stress rating. Operating within a temperature range of -10 °C to 80 °C, it supports any mounting position via threaded pin or internal thread and includes an M5 pneumatic connection while complying with RoHS and VDMA24364-B2-L LABS conformity standards. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553419
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553419.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 29 mm
- Size
- 20
- Stroke range
- 301 mm...350 mm
- Piston rod extension
- 101 mm
- Design
- Round
- Mounting position
- Any
- Structural design
- Protective bellows kit | With ducted exhaust
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 5% by mass of copper, zinc or nickel are excluded | from use. The exceptions are nickel in steel, chemically nickel-plated | surfaces, printed circuit boards, cables, electrical plug connectors and | coils.
- Media resistance
- Dust | Chips | Oils | Grease | Petrol
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 100 g
- Type of mounting
- With threaded pin | With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Adaption parts material
- PA-reinforced
- Seals material
- NBR
- Bellows material
- NBR
- Threaded pin material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553419. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
