Festo
553544

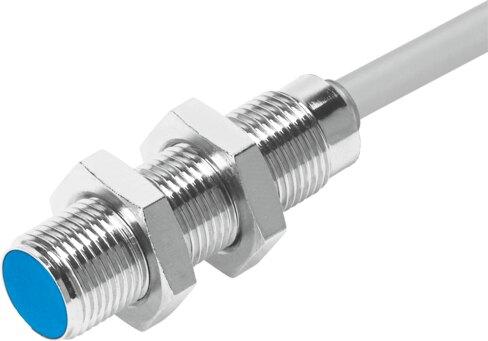

Proximity sensor SIEF-M12B-NS-K-L
Festo Proximity sensor SIEF-M12B-NS-K-L, part number 553544, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 553544
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553544.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Note on materials
- RoHS compliant
- Rated operating distance
- 3 mm
- Ambient temperature
- -30 °C...70 °C
- Repetition accuracy
- 0.16 mm
- Switching output
- NPN
- Switching element function
- N.O. contact
- Max. switching frequency DC
- 3000 Hz
- Max. output current
- 200 mA
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-wire | Cable
- Cable length
- 2.5 m
- Material of cable sheath
- TPE-U(PU)
- Size
- M12
- Mounting type
- Flush
- Product weight
- 105 g
- Housing material
- Brass | TPE-O | Chrome-plated
- Switching status indication
- Yellow LED
- Ambient temperature with exible cable installation
- -5 °C...70 °C
- Degree of protection
- IP68
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553544. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
