Festo
553547

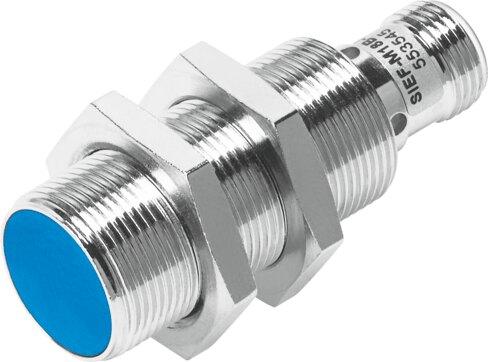

Proximity sensor SIEF-M18B-NS-S-L
The Festo 553547 is a flush-mountable M18 round industrial component featuring an NPN switching output with an N.O. contact function and a 5 mm rated operating distance. Conforming to EN 60947-5-2, this RoHS-compliant device operates on a 10 V to 30 V DC range with a 3000 Hz max DC switching frequency, pulsed short-circuit protection, and reverse polarity protection for all electrical connections. It includes a 3-pin M12x1 chrome-plated brass plug housing and functions within an ambient temperature range of -30 °C to 85 °C, backed by RCM compliance, c UL us listing, alongside CE and UKCA markings. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553547
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553547.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Note on materials
- RoHS compliant
- Rated operating distance
- 5 mm
- Ambient temperature
- -30 °C...85 °C
- Repetition accuracy
- 0.28 mm
- Switching output
- NPN
- Switching element function
- N.O. contact
- Max. switching frequency DC
- 3000 Hz
- Max. output current
- 200 mA
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-pin | M12x1 | Plug
- Material of plug housing
- Brass | Chrome-plated
- Size
- M18
- Mounting type
- Flush
- Product weight
- 41 g
- Housing material
- Brass | Chrome-plated
- Switching status indication
- Yellow LED
- Degree of protection
- IP68
- Resistance to interference from magnetic elds
- Magnetic direct and alternating elds
